Cartographer Cyclone
Cartographer Cyclone
Couldn't load pickup availability
The Cartographer Cyclone is a high-efficiency, high-airflow fan in a compact package. It is capable of delivering CPAP-grade performance in a 5015 form-factor toolhead-mounted fan. The precision CNC aluminium blades offer unrivalled pressure, durability and consistency. The performant and reliable design uses an FPV Racing drone motor with a custom motor controller to fit within its compact form factor.
Cyclone is available in three form factors

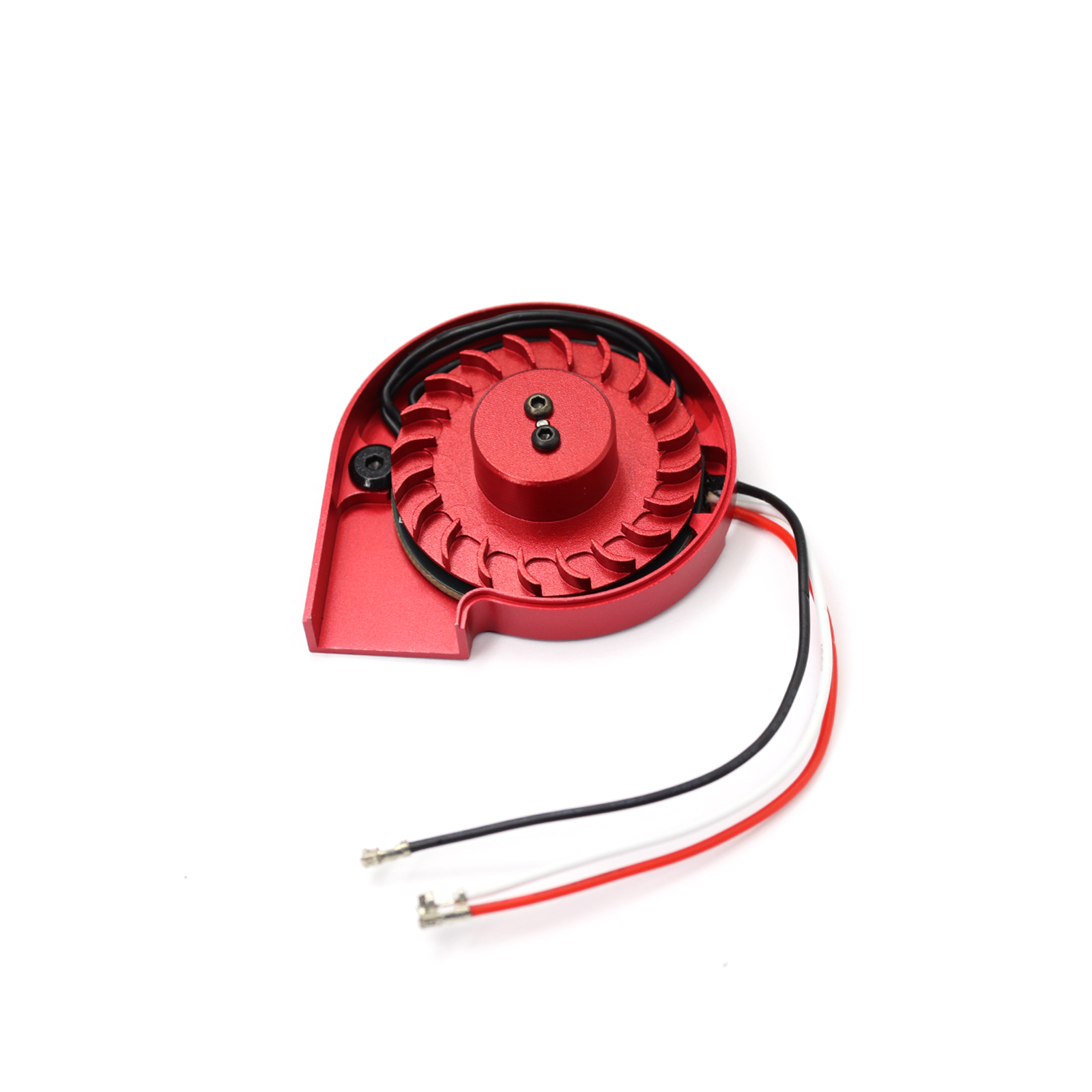

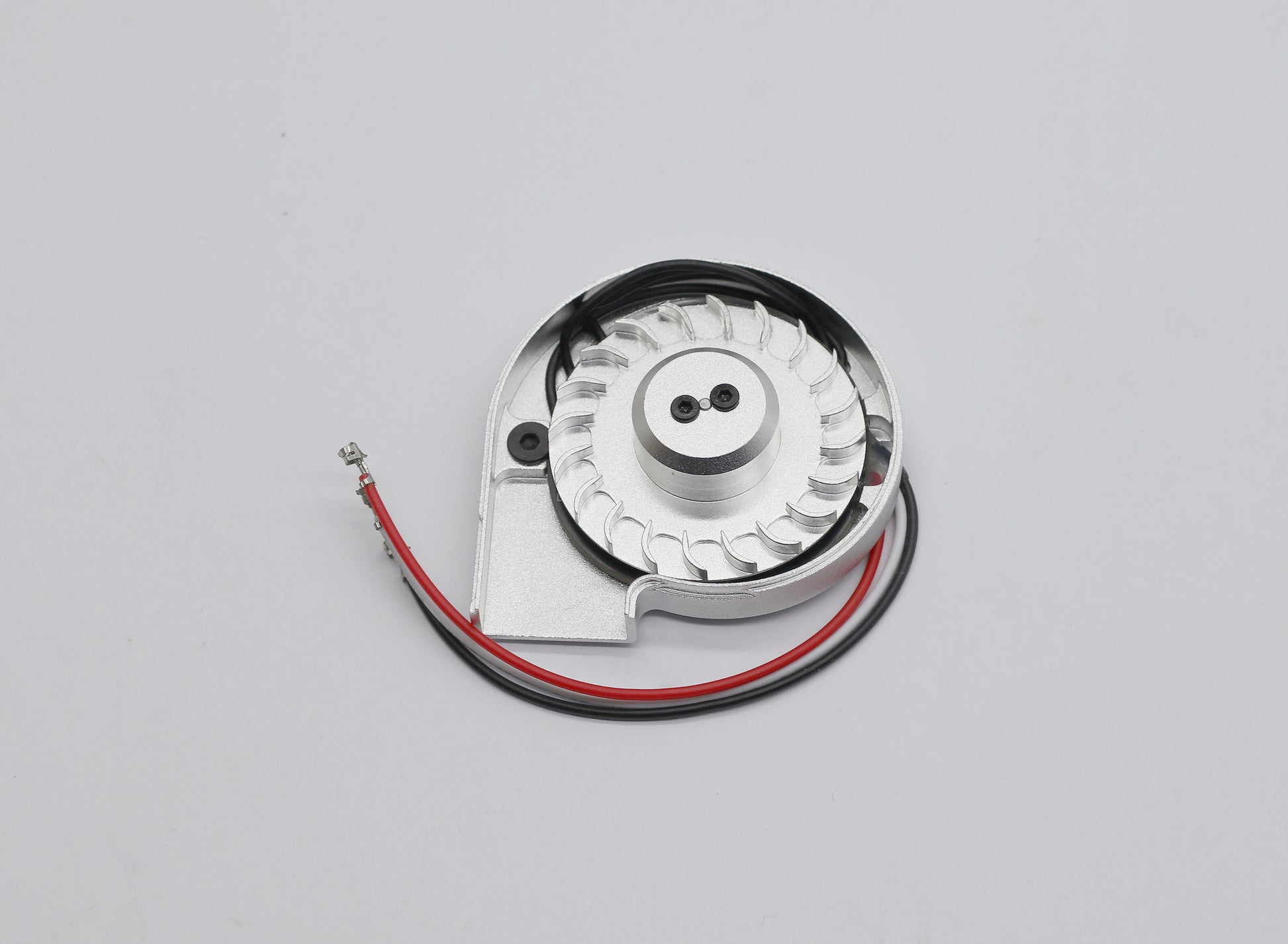

- Full CNC, StealthBurner Ready (no front shroud)

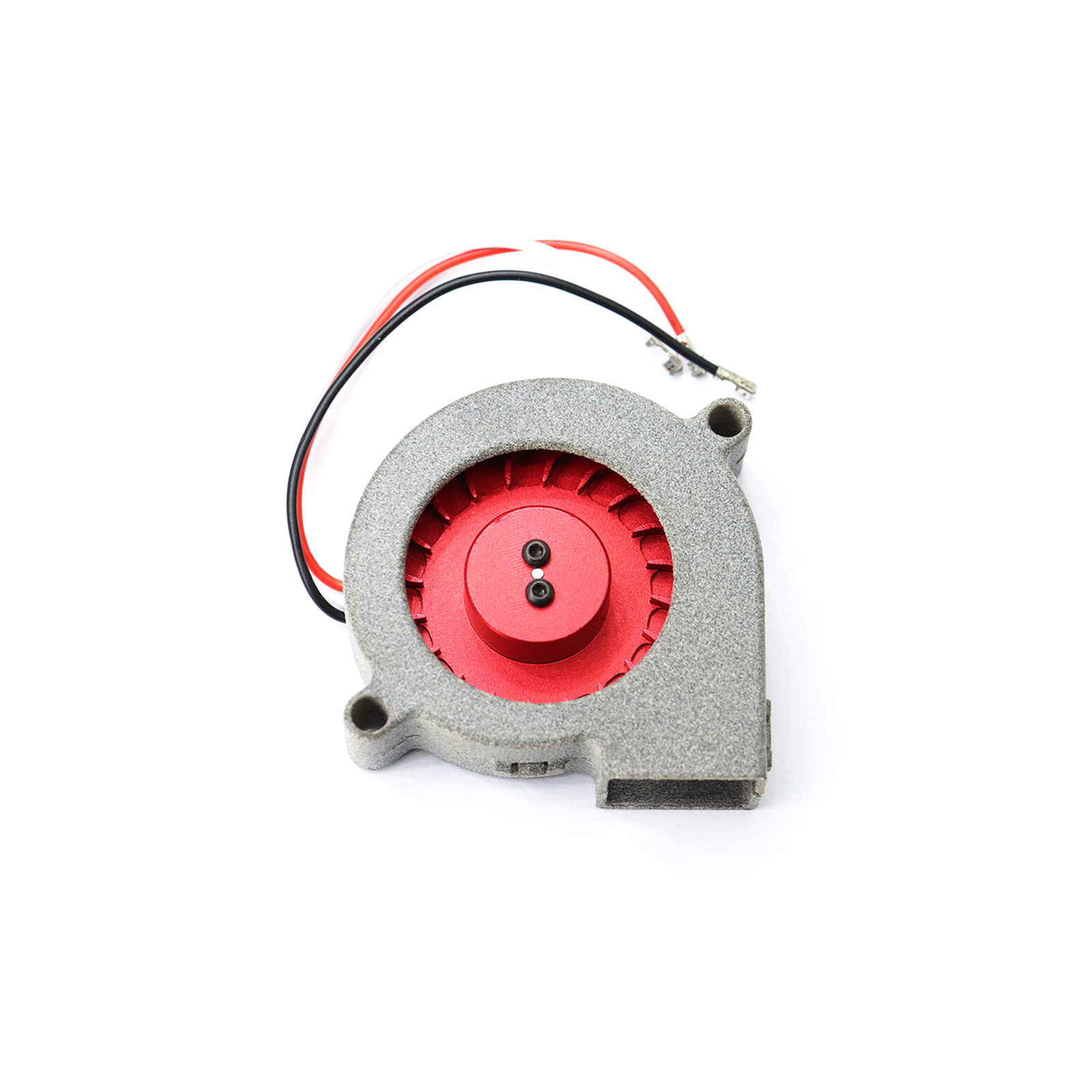

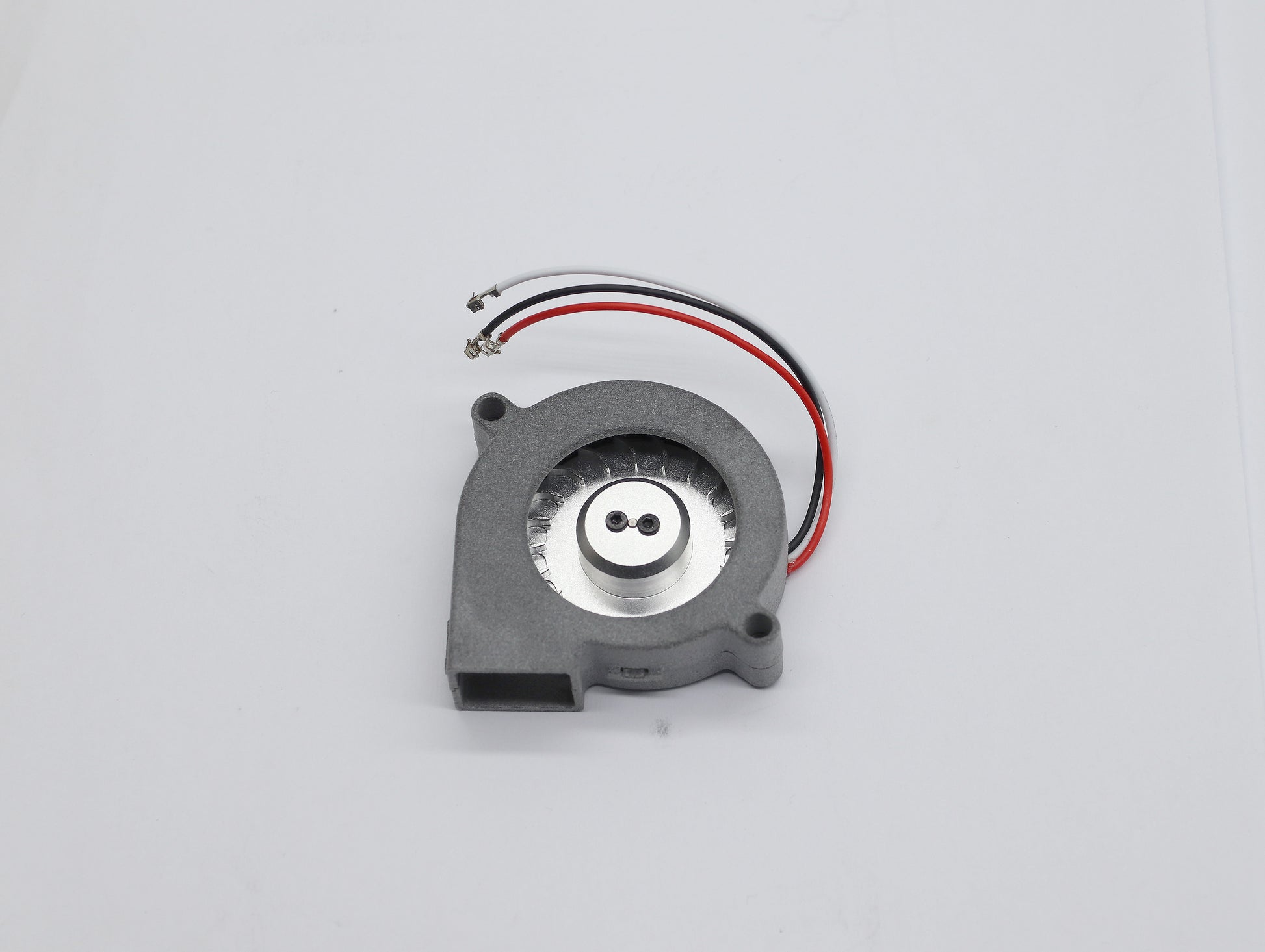

- Standard 5015 - Great for any toolhead using a standard 5015 radial fan

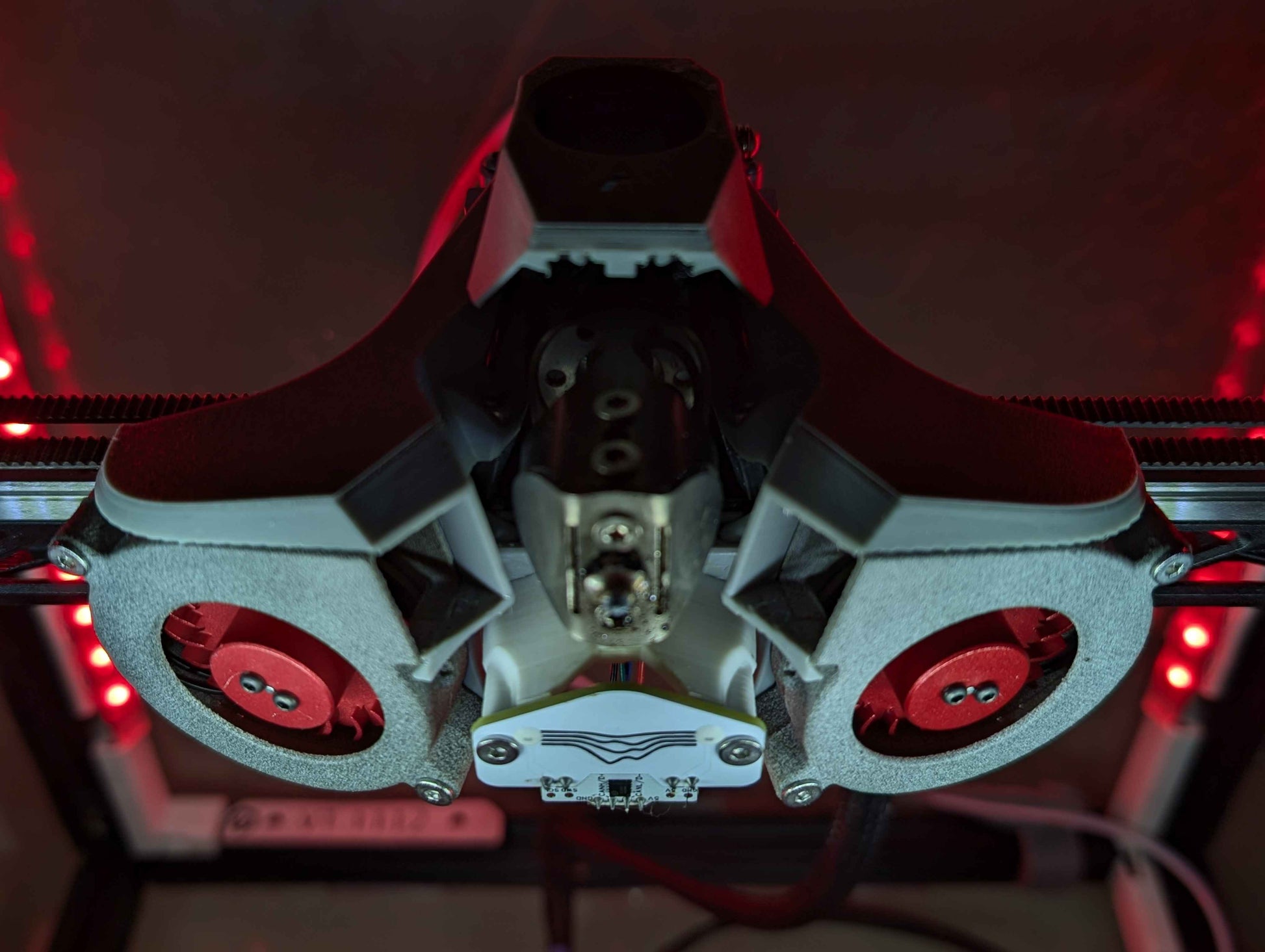

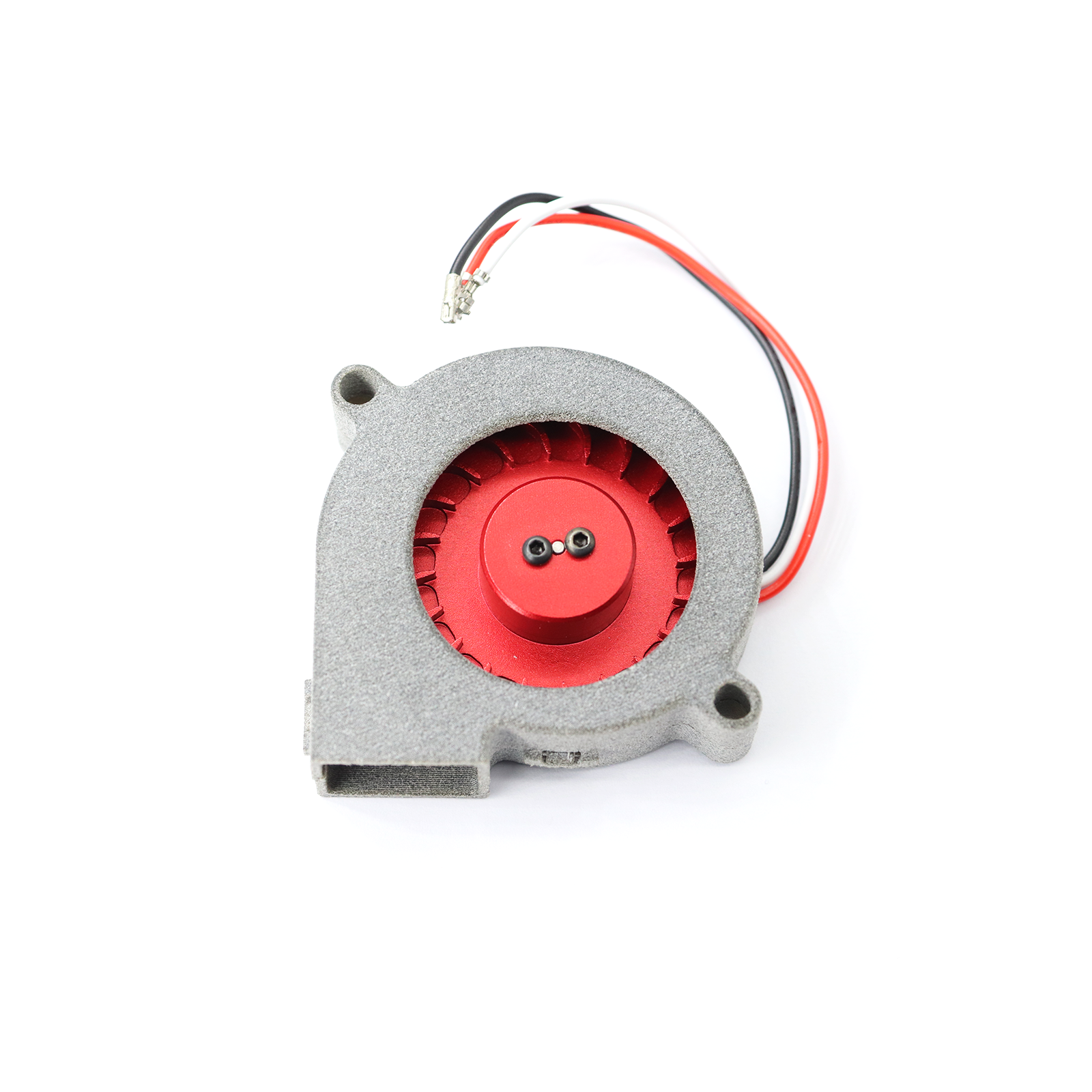

- Reversed 5015 - Ideal for toolheads like APD Reaper
Tech Specification
Maximum Power Draw: 30W @ 100%
Operating Voltage: 24V
CFM: 7.2 CFM @ Full Power
Audio Level: up to 70dB @ 100%
Body Material (Standard & Reverse): SLS 3D Printed
Body Material (StealthBurner): CNC 6015 Aluminium
Blade Material: CNC 6015 Aluminium
Things to note
- This fan is LOUD. We don't have the exact dB, but please check out the video below.
- The blades are made of metal, they could do a lot of damage, don't stick your body parts in it.
