Cartographer Probe V4 JRRF26 Edition

Will ship after Wenesday 3rd June 2026, from our China Warehouse (Worldwide minus UK, and any fast shipments) or Tuesday 9th June 2026, from UK Warehouse.

The Ultimate Eddy Current Displacement Sensor for 3D Printers

The Cartographer Probe V4 JRRF Edition is a special limited release of the Cartographer Probe V4, created exclusively for JRRF.

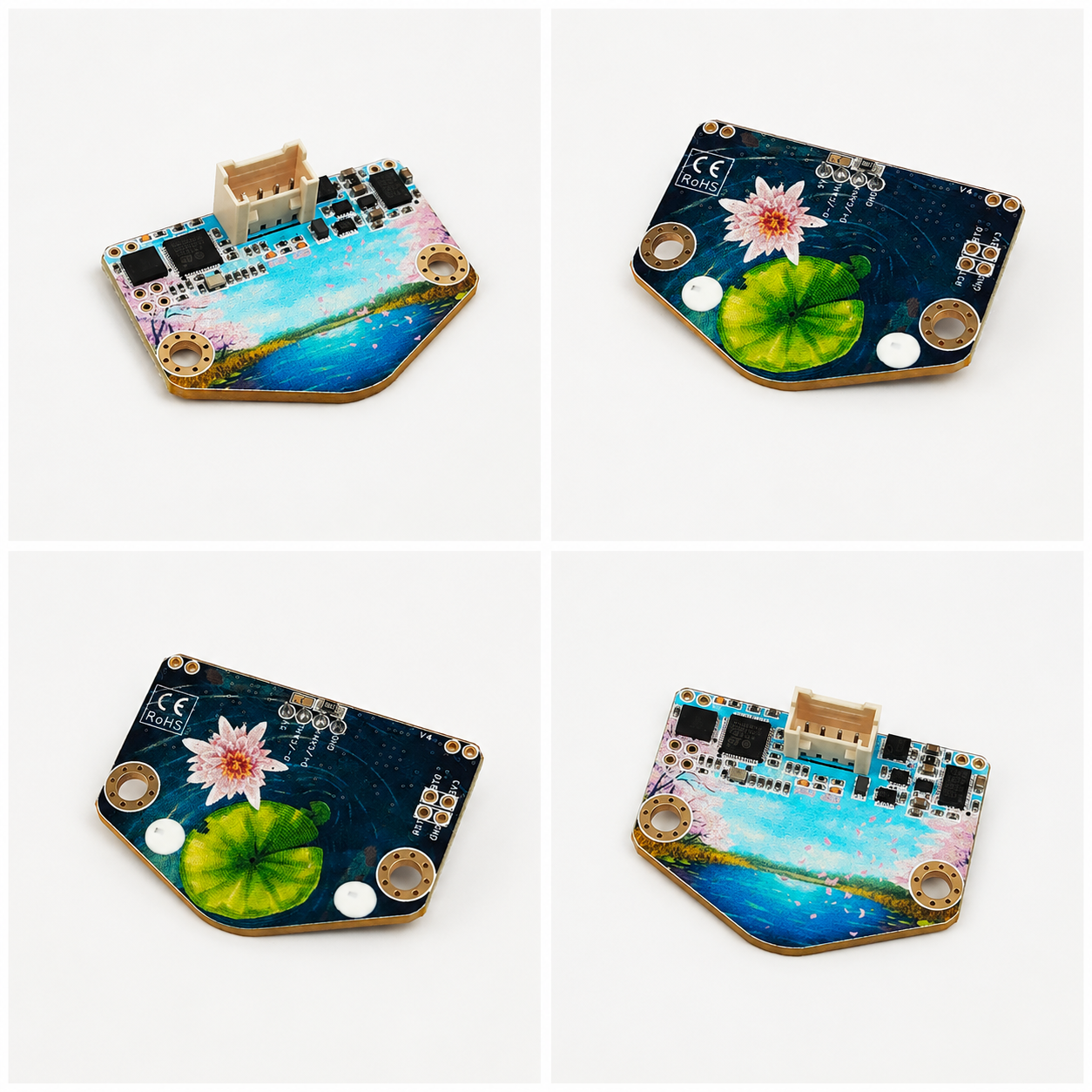

This edition features a beautiful custom design by volt64bolt, printed directly onto the PCB using a high quality full colour silkscreen finish. The result is a premium looking probe that stands out on your toolhead while still delivering the performance, precision, and reliability expected from Cartographer V4.

Very limited stock available. Once this batch is gone, availability is not guaranteed.

USB and CAN Compatible

This probe works with both USB and CAN setups.

The probe ships with both USB and CAN cables and is flashed with USB firmware by default. You can easily change this to CAN firmware if required.

What is New?

Cartographer V4 introduces a new all-in-one design, along with improved thermal and electrical reliability.

• Faster and more powerful MCU rated to 125°C*
• Simple and reliable all-in-one design**
• Increased accuracy with refined coil routing and design
• Updated and improved USB cable
• No more bridging pads for DFU mode, we gave you holes instead
• Switch between CAN and USB via firmware, with no soldering required

* Although most components are rated up to 125°C, we do not recommend going above 110°C ambient temperature.

** Please note, our design is slightly different to our competitor's H variety. Please check the CAD. V4 is compatible with the majority of Cartographer V3 mounts.

Cartographer and CAN

CAN provides easy and simple wiring. There is no need to run multiple wires from your MCU or use one of your limited USB ports. Simply tap into your toolhead's CAN output and enjoy a seamless setup.

It is recommended to run your CAN network at a baudrate of 1,000,000.

Input Shaping with ADXL345

With the probe's proximity to your printer's nozzle, the onboard ADXL345 can provide a higher level of accuracy when running input shaper compared with motor-mounted alternatives.

Specifications

• MCU: STM32G431
• Connectivity: CAN and USB via 4-pin Genuine Molex Sherlock connector
• Firmware Requirement: Klipper
• Recommended Maximum Operating Temperature: 110°C ambient

Many components are rated higher than 110°C. The only component not rated for high temperature is the ADXL345. This was a choice made to keep the price down. We have observed no issues running the ADXL345 at higher temperatures, although we do not recommend relying on it for input shaping after prolonged use over 85°C.

What is Included?

• 1 x Cartographer Probe V4 JRRF Edition
• 1 x 1.8m USB Cable, USB-A to Genuine Molex Sherlock
• 1 x 18cm CAN Cable, DuPont to Genuine Molex Sherlock
• 1 x Silicone Nozzle Brush
• 1 x Cartographer V4 Fastener Pack

Benefits

• Optimise Print Quality: Accurate bed levelling leads to higher quality prints, helping reduce imperfections and defects.
• Save Time: Faster scans and fewer print retries mean you complete your projects faster.
• Resource Efficiency: Accurate first-time prints mean less wasted filament and fewer failed prints.
• Peace of Mind: Knowing your printer's bed is perfectly levelled allows you to focus on creating, not troubleshooting.

Which Version Should I Buy?

• Standard Edition: Ideal for Voron StealthBurner, Annex, and similar setups.
• Low Profile Edition: Perfect for VzBot and RatRig printers.

Currently, we do not support delta printers.

Take Your 3D Printing to the Next Level

No more guesswork, no more wasted time, and most importantly, no more compromise on quality. Get your Cartographer Probe V4 JRRF Edition today and step into a world of 3D printing like you have never experienced before.

Note: Cartographer Probes ship from either the People's Republic of China or the United Kingdom.
