Cartographer3D CNC Toolhead Mount - Color Edition

Cartographer3D CNC Toolhead Mount - Color Edition

Regular price $24.99 USD
Regular price Sale price $24.99 USD
Sale Sold out
Shipping calculated at checkout.
Color

Product Overview: Experience precision like never before with our Ultra-Light CNC'ed Mount, meticulously designed for seamless integration with the StealthBurner CW2 and the Cartographer3D Probe.

Color Edition is only available in 6mm UHF due to the small quantities made.

Color Edition CNC Mount is designed to match as closely as possible the Cartographer V3 Color Edition. These colors may not match perfectly (especially the pink).

If you're interested in getting a colour probe to go with it - https://cartographer3d.com/products/cartographer-v3-colour-edition

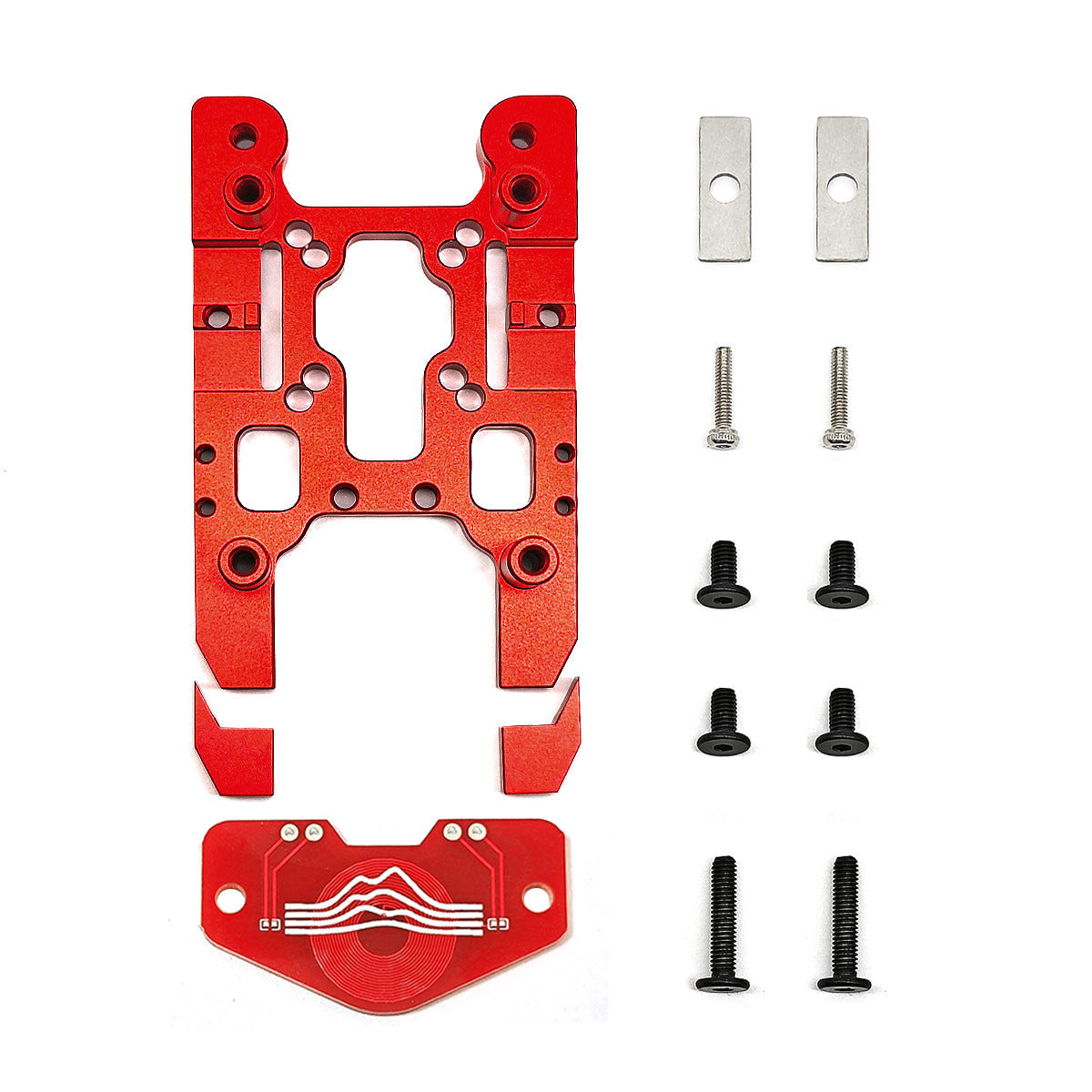

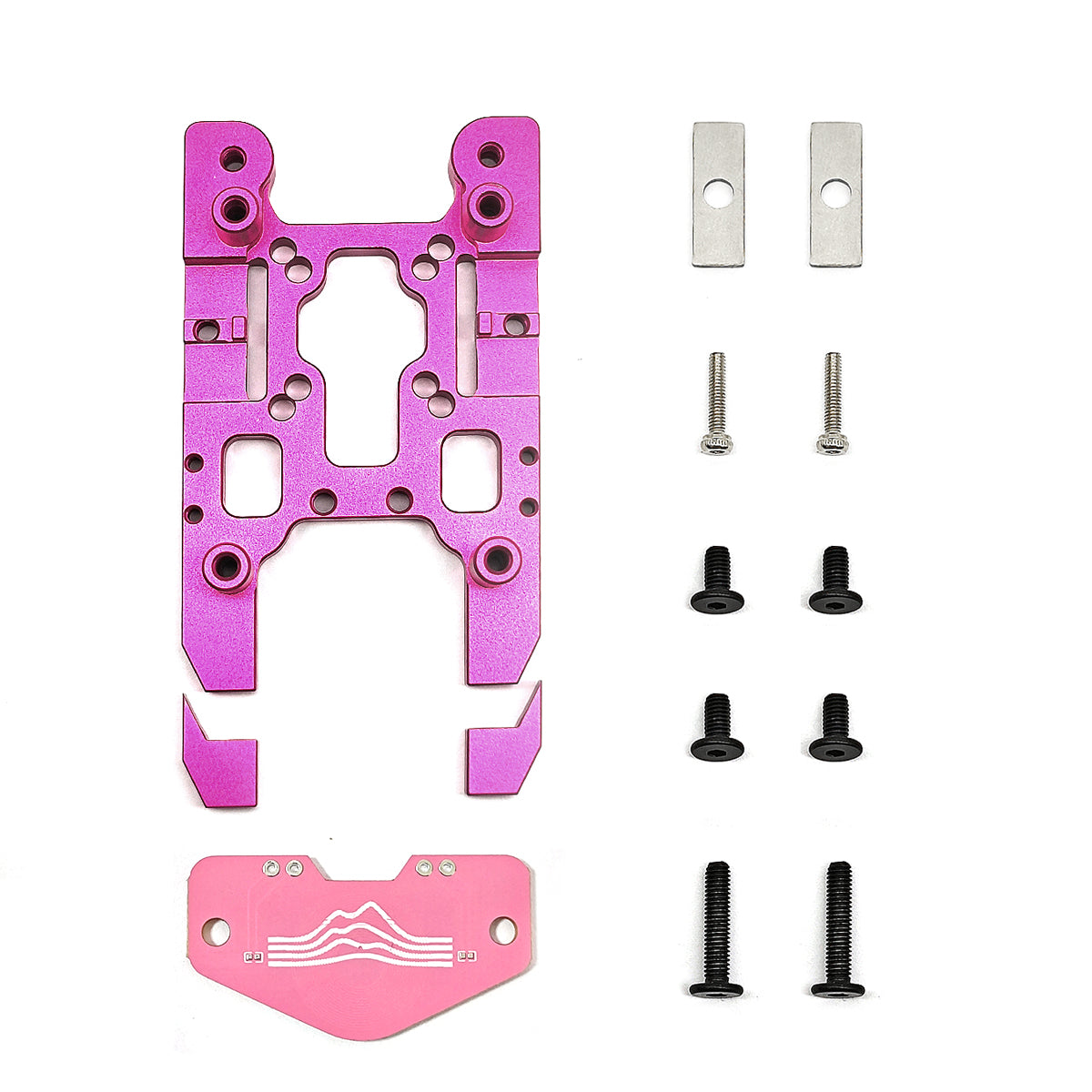

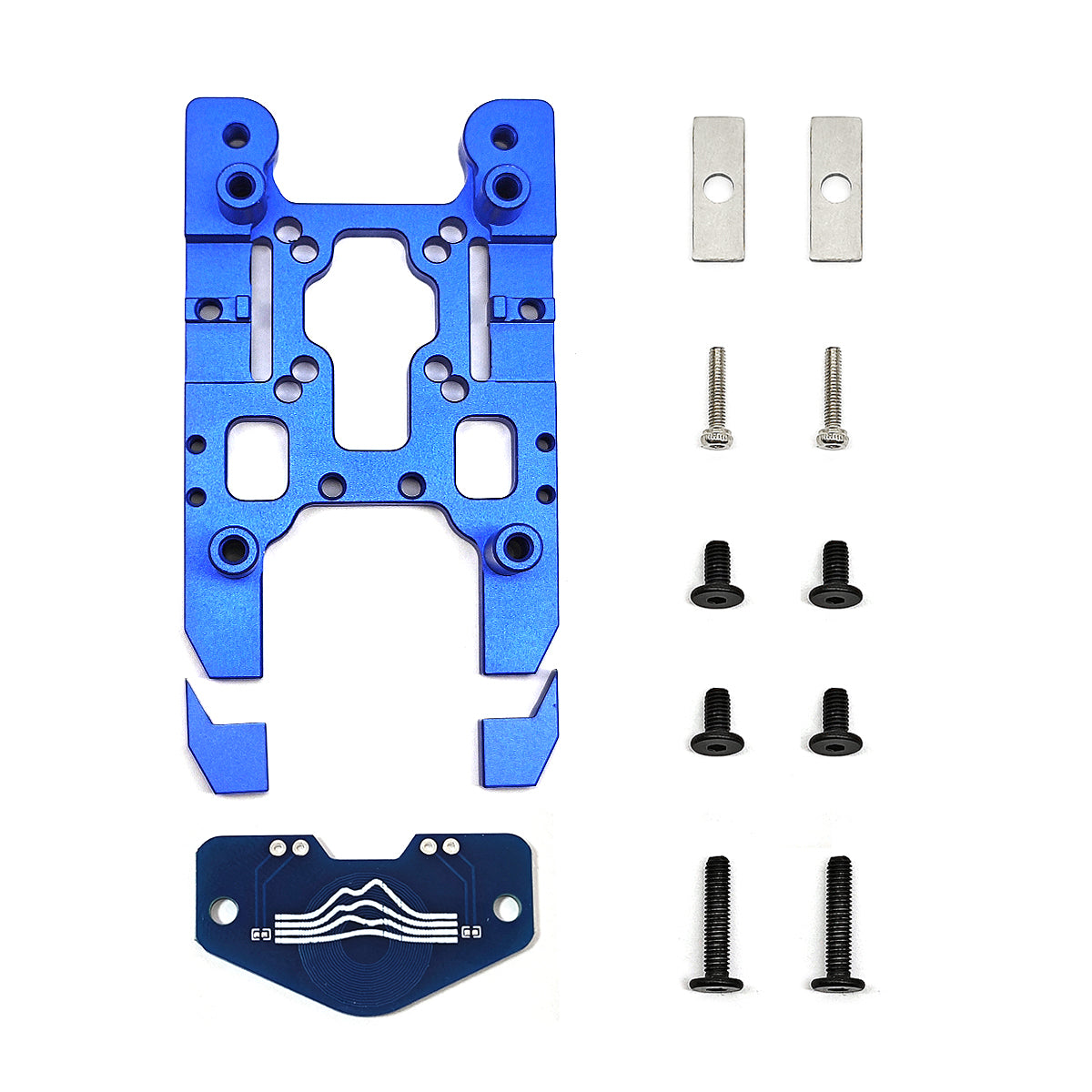

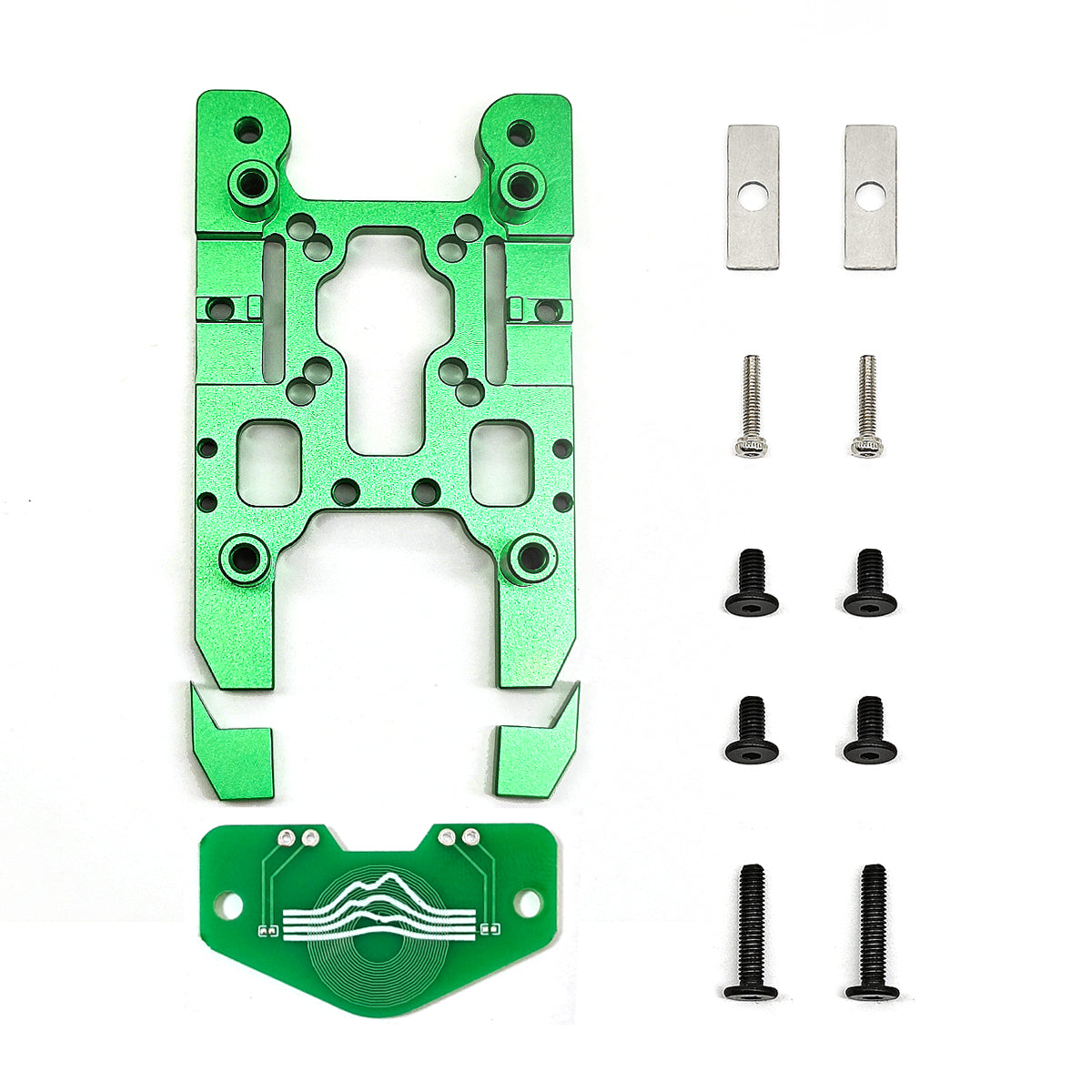

NOTE - Color coil board / probe is not included and is for illustration purposes only.

 Key Features:

  • Compatibility: Expertly tailored to fit both StealthBurner and the Cartographer3D Probe, offering a versatile solution for your printer.
  • Lightweight Design: Made from high-grade 6061 aluminum, this CNC'ed mount is ultra-lightweight at 25.7 grams, yet incredibly durable, enhancing the efficiency of your equipment without adding extra bulk.
  • Precision Engineering: CNC machining ensures precise dimensions and an impeccable fit, guaranteeing stability and reliability in every use.
  • Versatile Rail Compatibility: Designed to mount effortlessly on both MGN9 (6mm version only) and MGN12 (6 & 9mm versions) rails, providing unparalleled adaptability for various setups.
  • Easy Installation: Intuitive design allows for quick and hassle-free installation, enabling you to get up and running in no time.
  • Rigidity - Our CNC StealthBurner mount adds a level of rigidity not possible with printed parts.
  • Enhanced Stability: The robust construction ensures that your StealthBurner and Cartographer3D Probe remain securely in place, delivering consistent accuracy during operation.

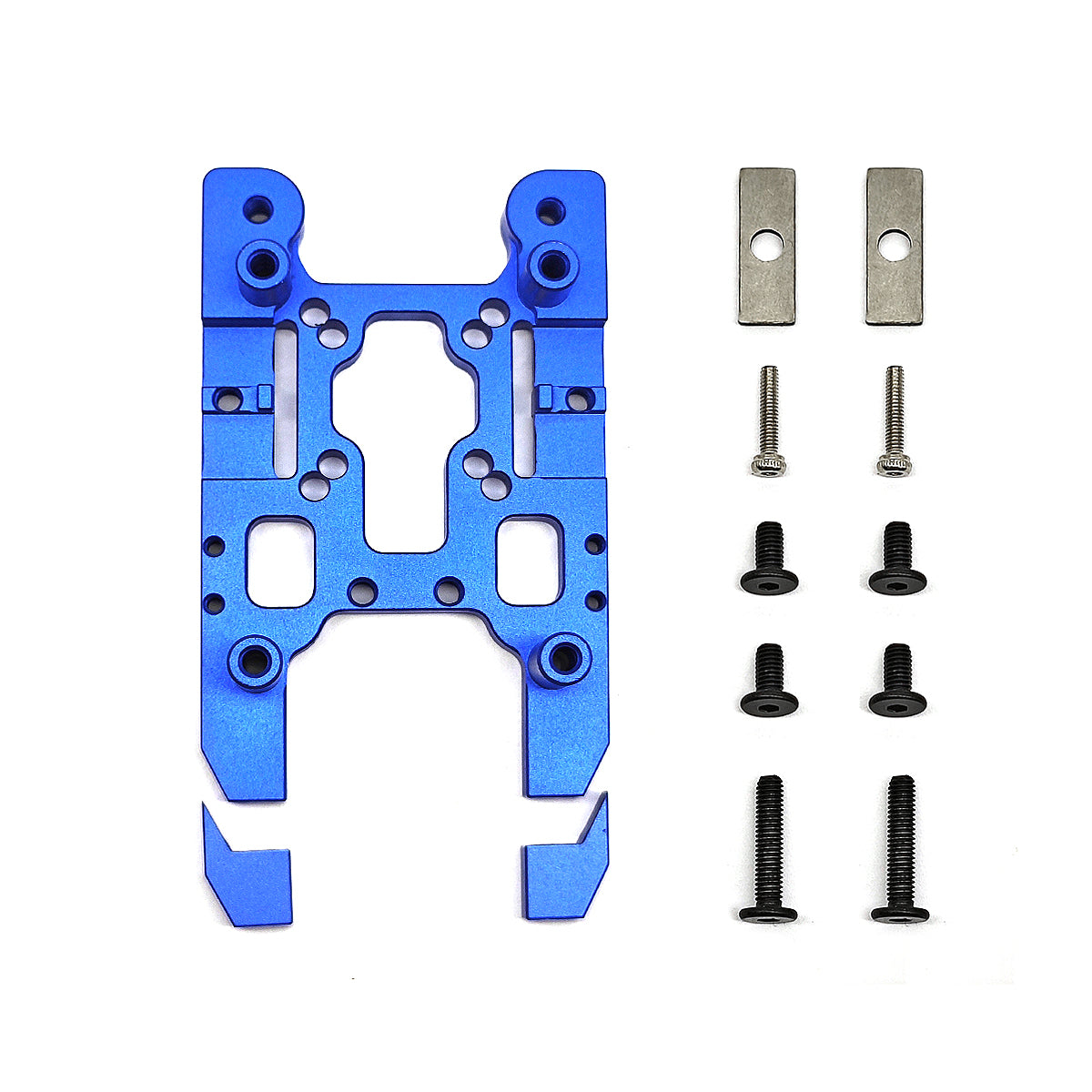

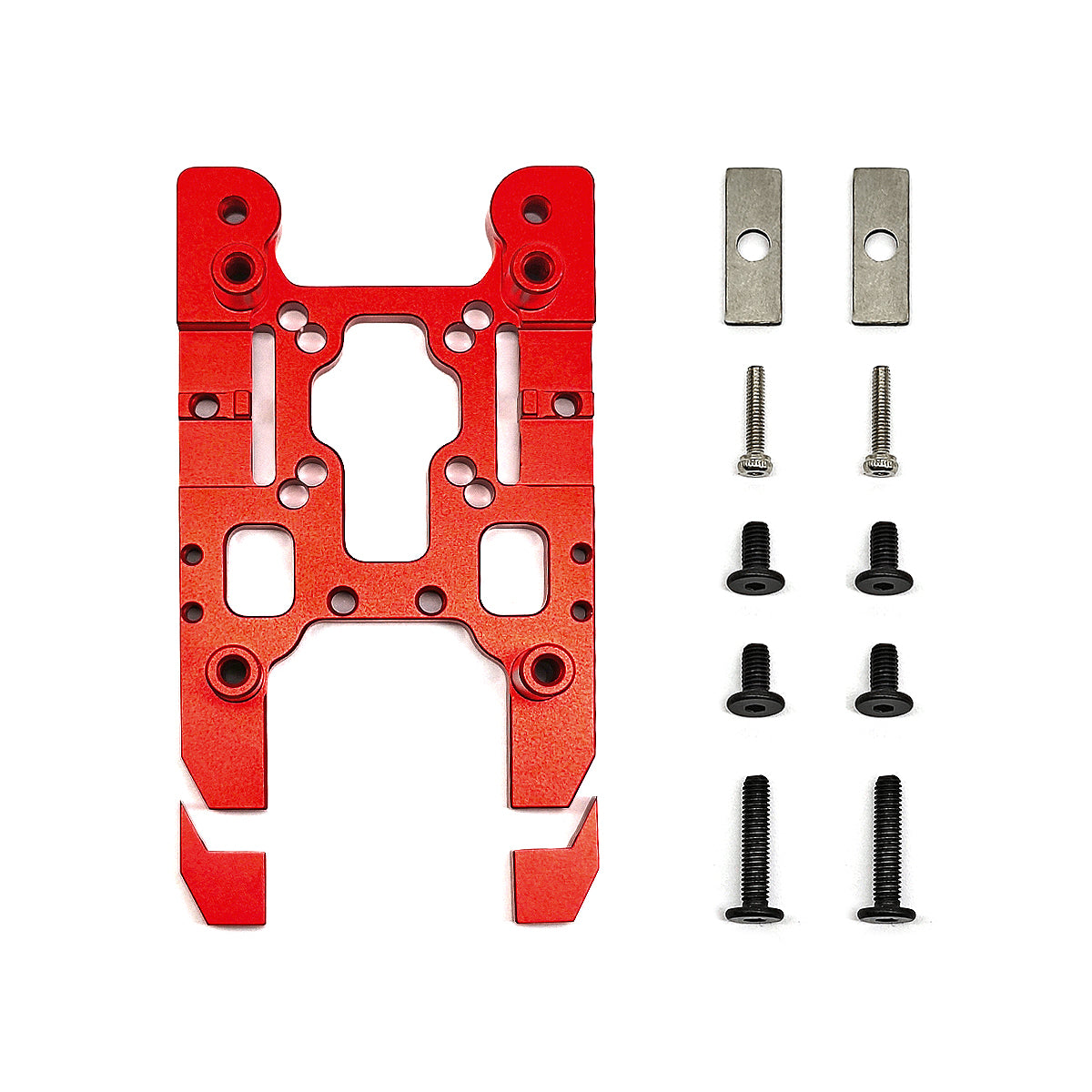

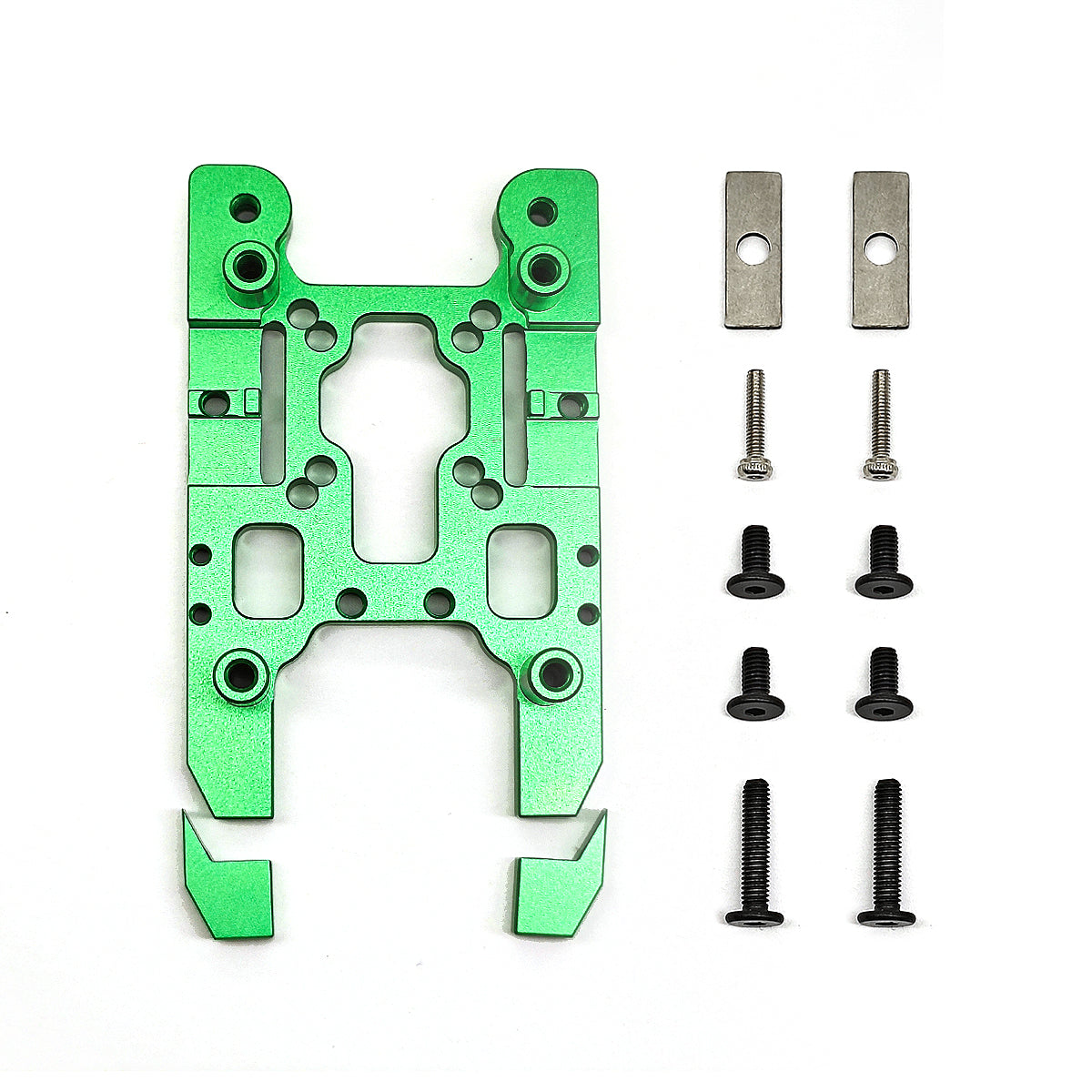

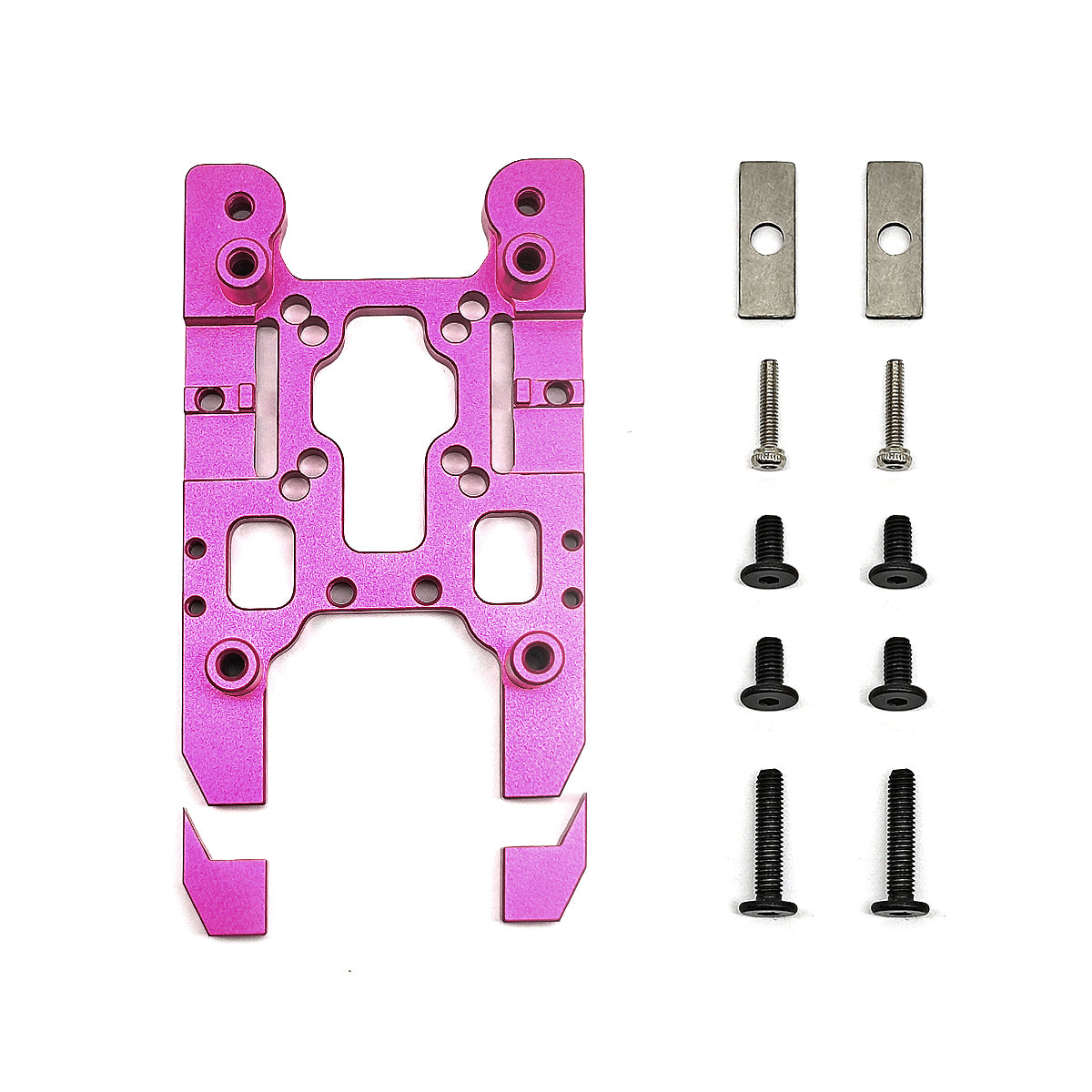

Included:

  • 1 x Cartographer3D CNC StealthBurner Mount
  • 2 x Belt Clamps and Bolts
  • 2 x BHCS M3 * 6 (for probe)

Compatibility

  • Voron StealthBurner Toolhead (tested on CW2)
  • Any Toolhead compatible with Stealthburner (or Tap) carriage

NOTE - XOL's Nozzle Height is slightly higher than the StealthBrurner Nozzle point, meaning modifications to XOL design might be required. If using anything other than a STANDARD StealthBurner setup, please check against the CAD available here.

Recommended for use with the Cartographer3D Standard USB or CAN Probe (not included).
